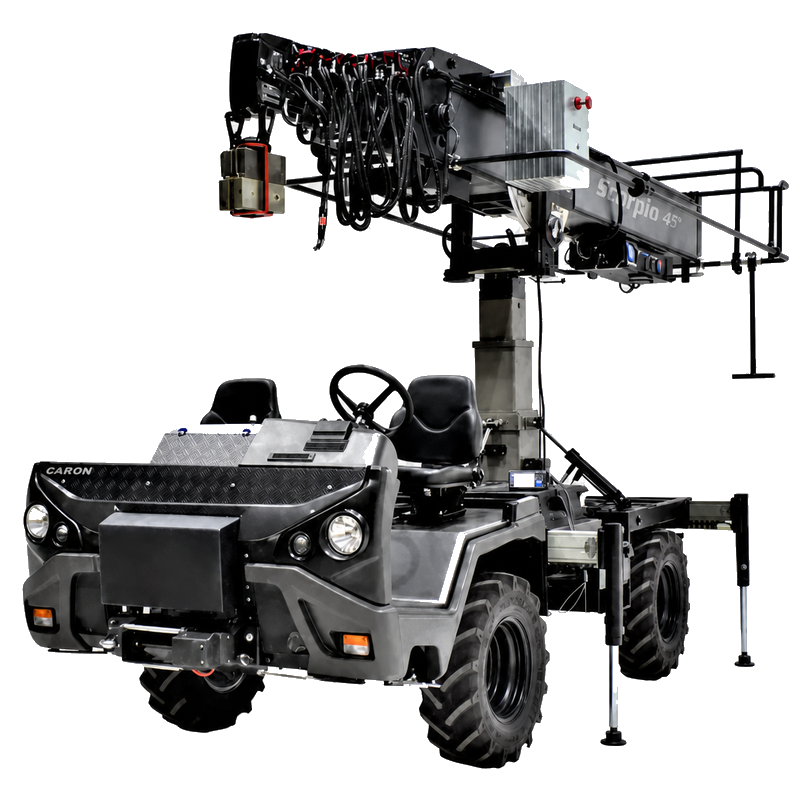

E-Scorpion Off-Road Base
Quick Specs
- System Type: 100% Electric 4WD / RWD Off-Road Base
- Base Width: 5’8”
- Base Length: 14’6”
- Min Height: 5’2”
- Min Height w/ SC45: 8’3”
- Base Length w/ SC45: 19’2”
- Weight Empty: 8,477 lbs
- Weight w/ SC45: 12,907 lbs
- Max Payload: 4,409 lbs
- Max Speed: 35 mph*

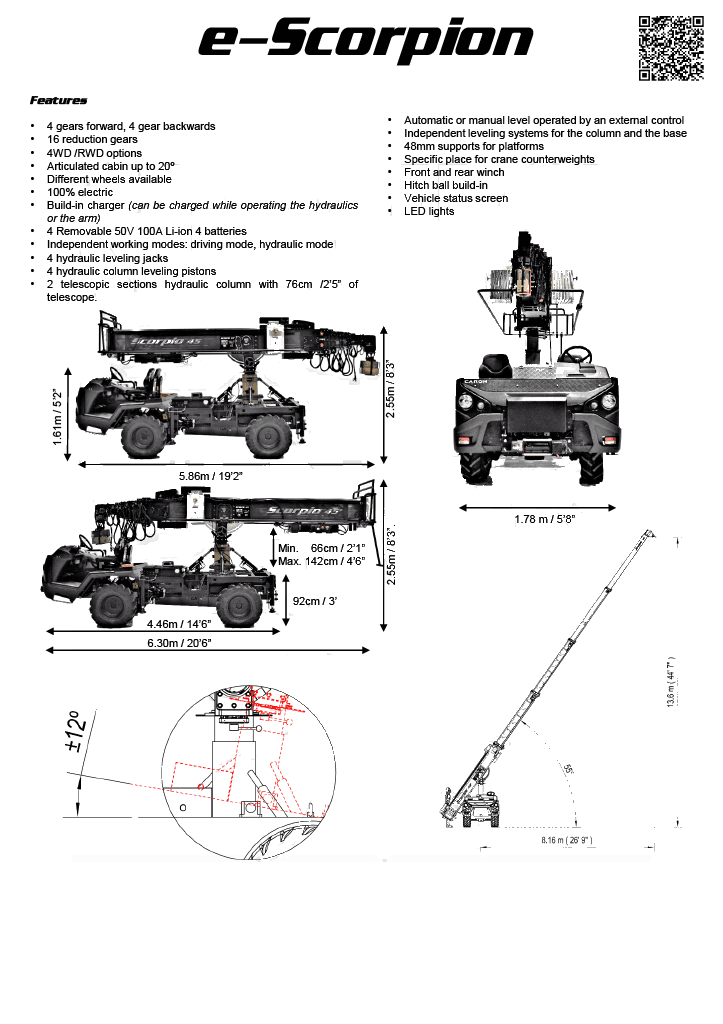

Specifications
E-Scorpion Off-Road Base
Specs
- Base width = 5’8”
- Base length = 14’6”
- Min height = 5’2”
- Min height w/SC45 = 8’3”
- Base length w/SC45 = 19’2”
- Weight empty = 8,477 lbs
- Weight w/SC45 = 12,907 lbs
- Max payload = 4,409 lbs
Features
- 100% electric — zero emissions, near-silent operation
- 4WD / RWD selectable
- Articulated cabin (up to 20°) for rough terrain
- 4 hydraulic leveling jacks + self-leveling column (±12°)
- 270° arm rotation, operated from the ground
- Front and rear winches, built-in hitch ball
- IP67-rated connections — submersible to the wheel axles
- Max speed = 35 mph*
