Scorpio 23'

Quick Specs

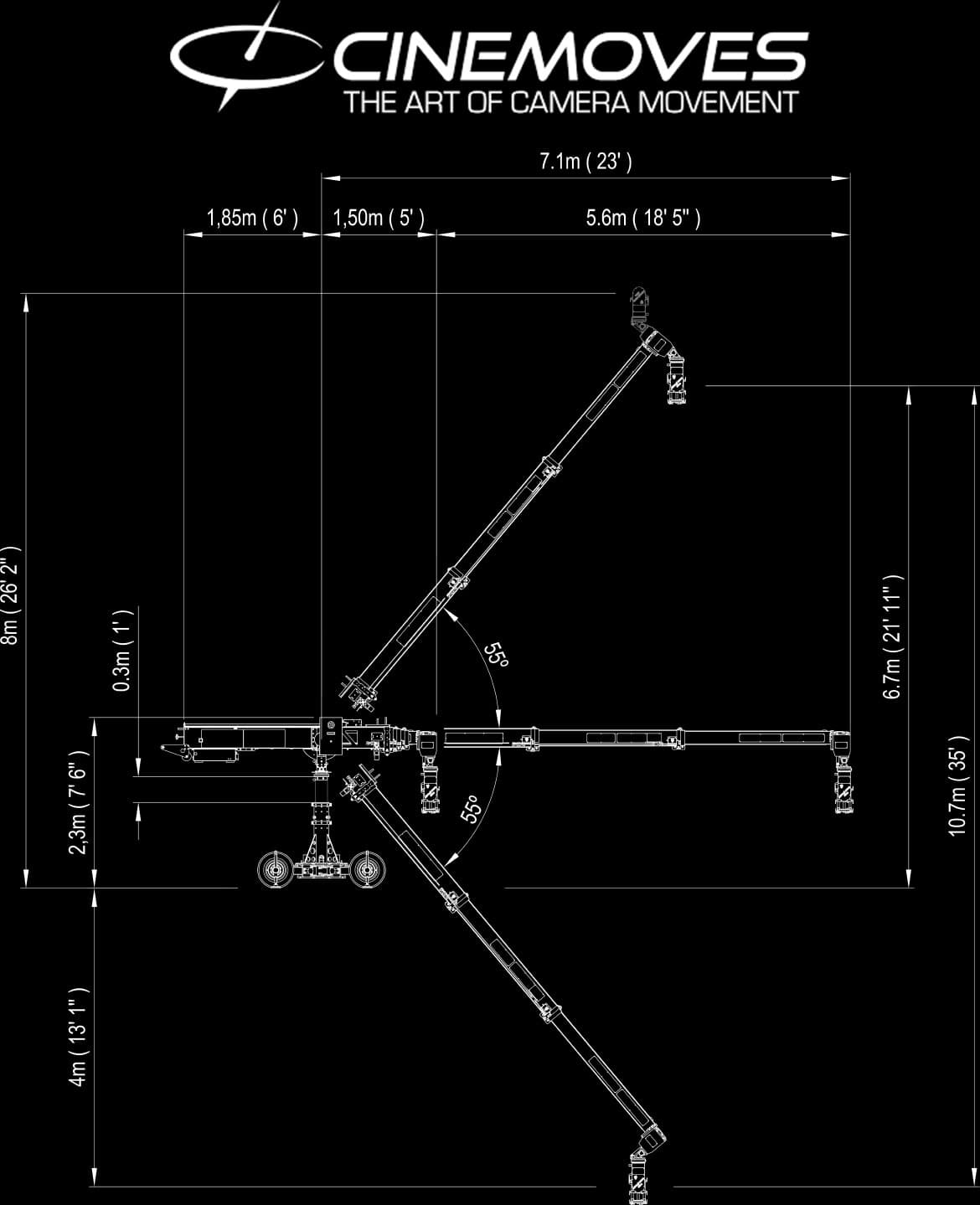

• Ext. Reach From Post: 23'
• Retracted Reach From Post: 5'8"
• Rear Length From Post: 7'
• Max Lens Height Underslung: 21'11"
• Max Lens Height Overslung: 26'2"

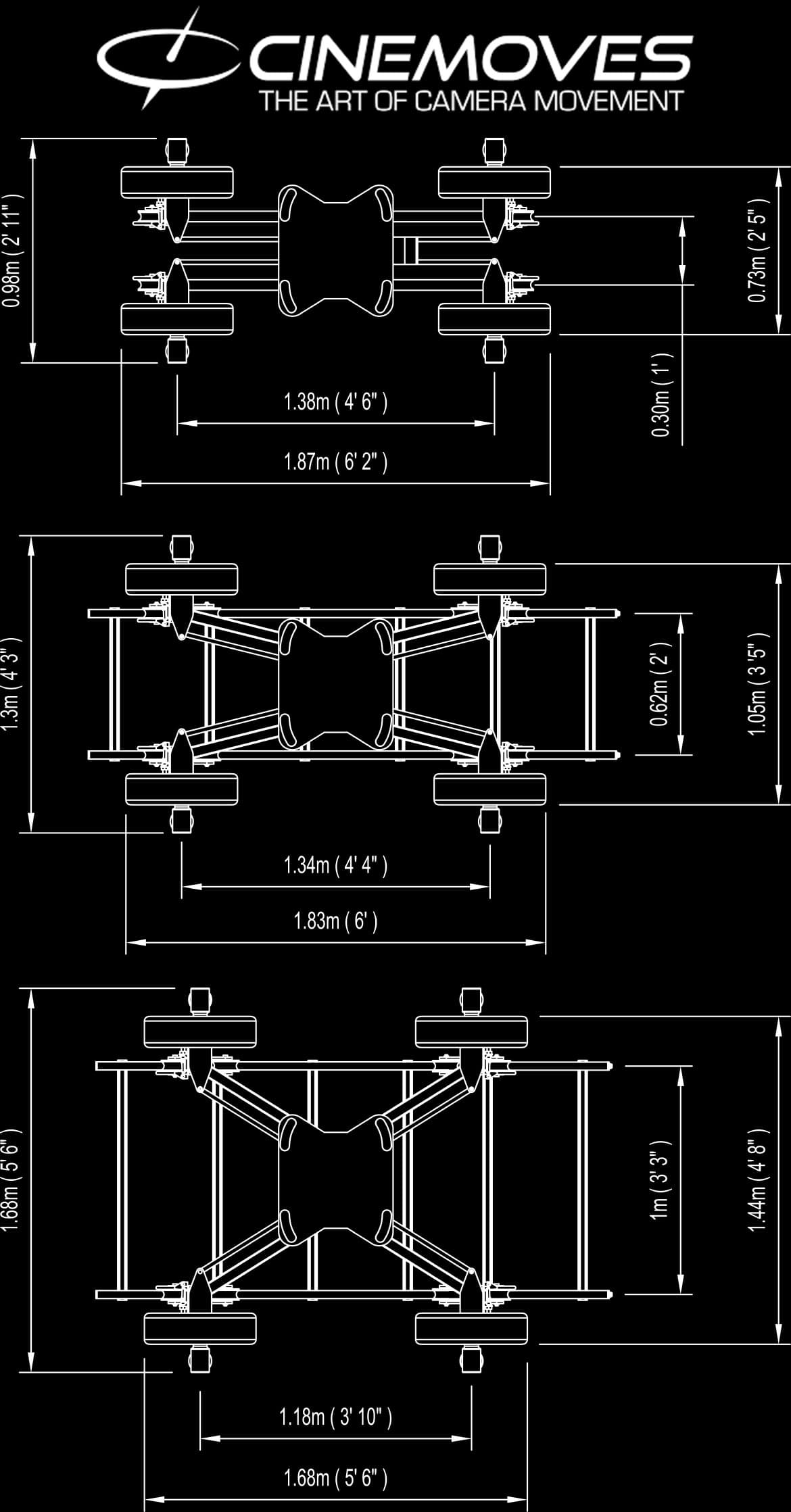

• Base Width: 2'5" – 5'11"
• Minimum Clearance: 6'6"
• Telescopic Range: 18'
• Max Nose Load / Underslung: 154 lbs
• Max Nose Load / Overslung: 99 lbs
• Max Speed: 5'10" per sec
• Total Weight Incl. Payload & Counterweights: 2,425 lbs
• Empty Crane Weight: 1,322 lbs
• Empty Arm Weight: 562 lbs
