Scorpio 30'-37'

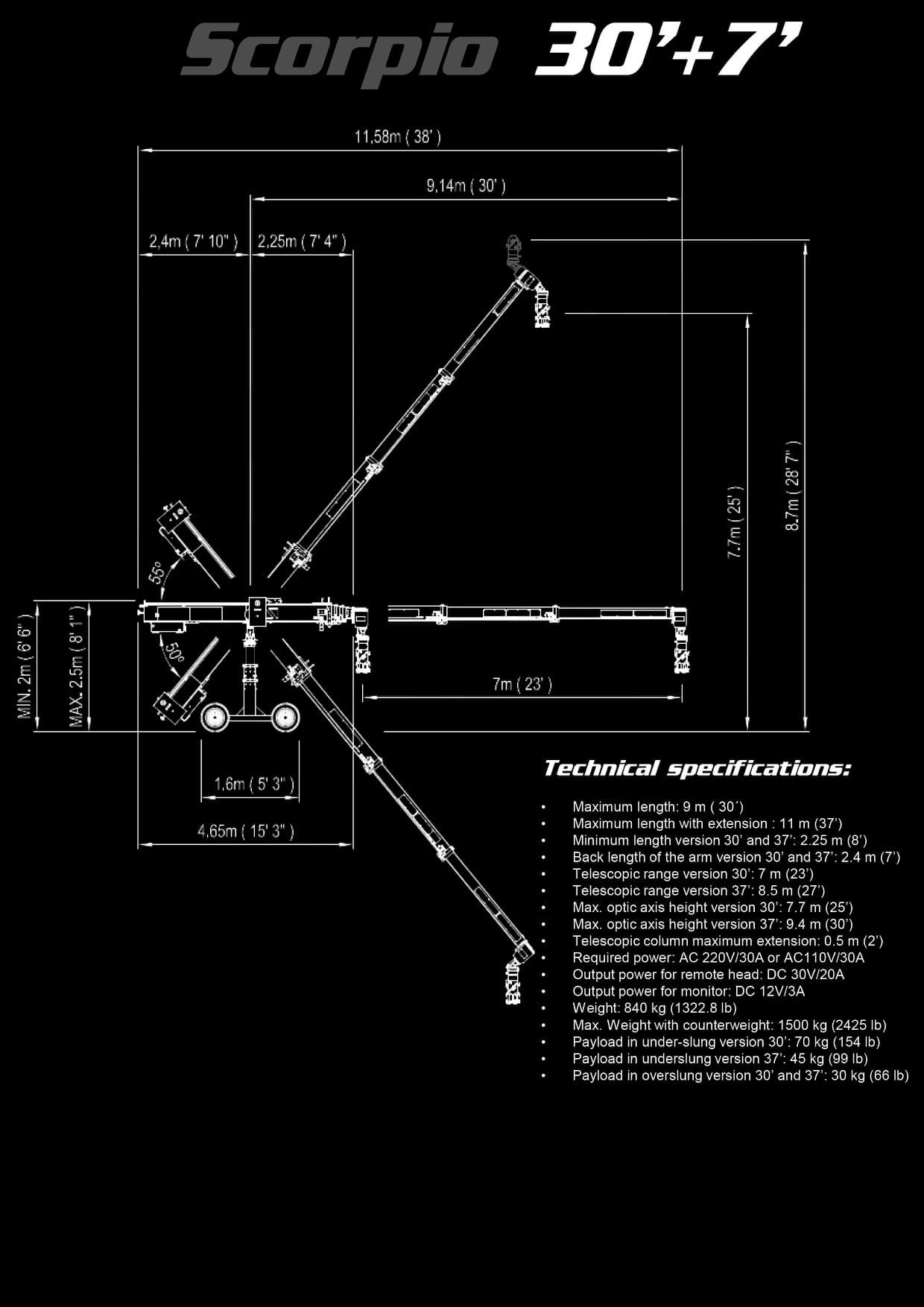

Quick Specs

• Ext. Reach From Post: 30'-37'
• Retracted Reach From Post: 7'6"
• Rear Length From Post: 8'
• Max Lens Height Underslung: 25'- 30'
• Max Lens Height Overslung: 27'- 39'
• Base Width: 3'8"- 5'
• Minimum Clearance: 6'4"
• Telescopic Range: 21' – 27'
• Max Nose Load / Underslung: 154 lbs
• Max Nose Load / Overslung: 66 lbs
• Max Speed: 6'6" per sec
• Total Weight Incl. Payload & Counterweights: 3,300 lbs
• Empty Crane Weight: 1,851 lbs
• Empty Arm Weight: 650 lbs
