Scorpio 10'

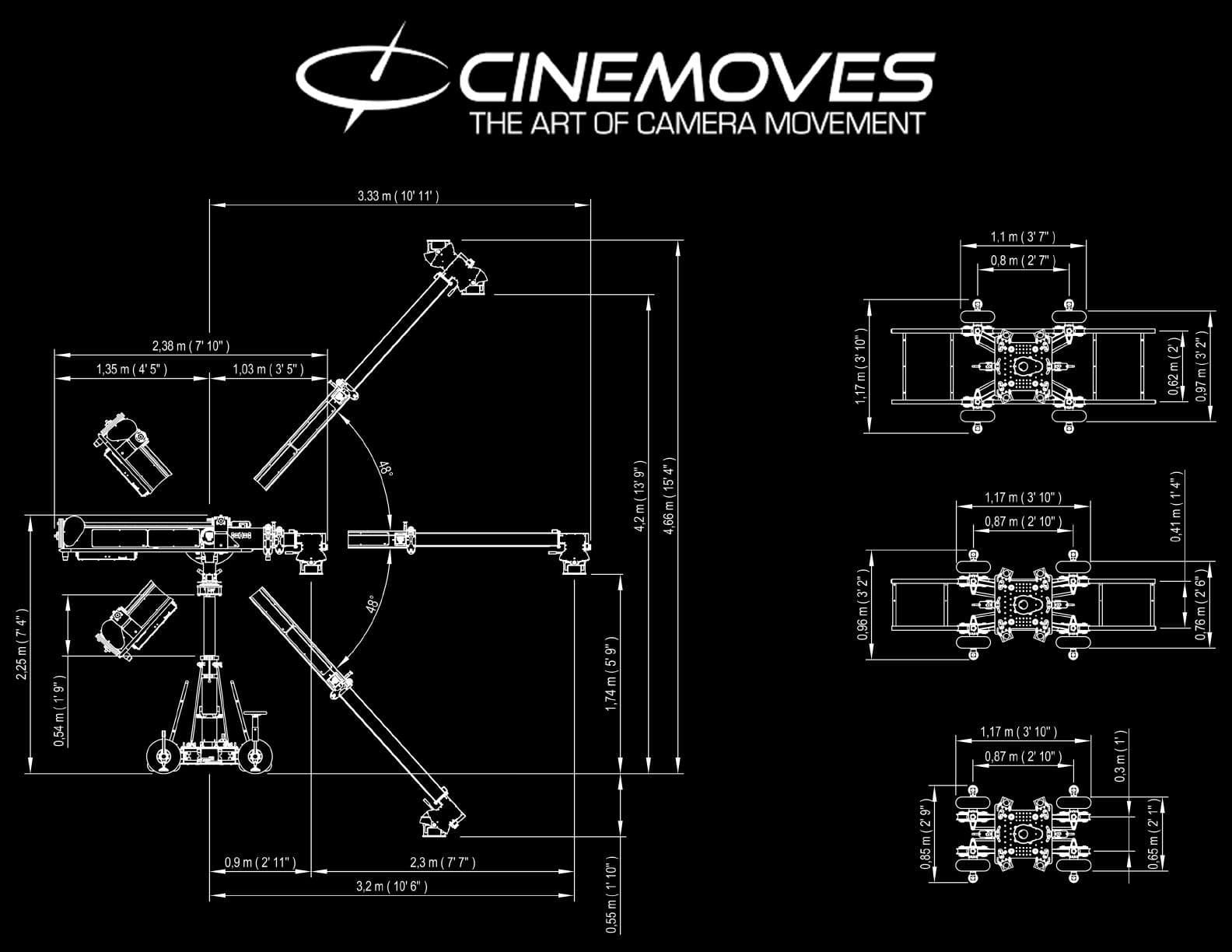

Quick Specs

• Ext. Reach From Post: 10'11"
• Retracted Reach From Post: 3'5"
• Rear Length From Post: 4'5"
• Max Lens Height Underslung: 12'10"
• Max Lens Height Overslung: 14'3"
• Base Width: 2'3"
• Minimum Clearance: 5'8"
• Telescopic Range: 7'7"
• Max Nose Load / Underslung: 132 lbs
• Max Nose Load / Overslung: 88 lbs
• Max Speed: 3'3"
• Total Weight Incl. Payload +Counterweights: 1,222 lbs
• Empty Crane Weight: 525 lbs
• Empty Arm Weight: 150 lbs
• Counterweights: 660 lbs
• Counter Weights Support: 35 lbs
• Dolly + Column: 255 lbs
• Leveling Head: 19 lbs
• Electro Box: 11 lbs
