Techno 30'
Quick Specs
- Ext. Reach From Post: 30'
- Retracted Reach From Post: 8'
- Rear Length From Post: 8'
- Max Lens Height Underslung: 26'
- Max Lens Height Overslung: 32'
- Base Width: 3'8" – 5'
- Minimum Clearance: 6'8"
- Telescopic Range: 22'
- Max Nose Load / Underslung: 165 lbs
- Max Nose Load / Overslung: 100 lbs
- Max Speed: 6'6" per sec
- Total Weight Incl. Payload & Counterweights: 3,300 lbs
- Empty Crane Weight: 1,337 lbs
- Empty Arm Weight: 725 lbs
Narrow Base is available upon request to narrow the Techno 30' base down to 45" wide. Short Post Kit can be added to the Techno 30' base, which allows you to shorten the height in 6" increments.

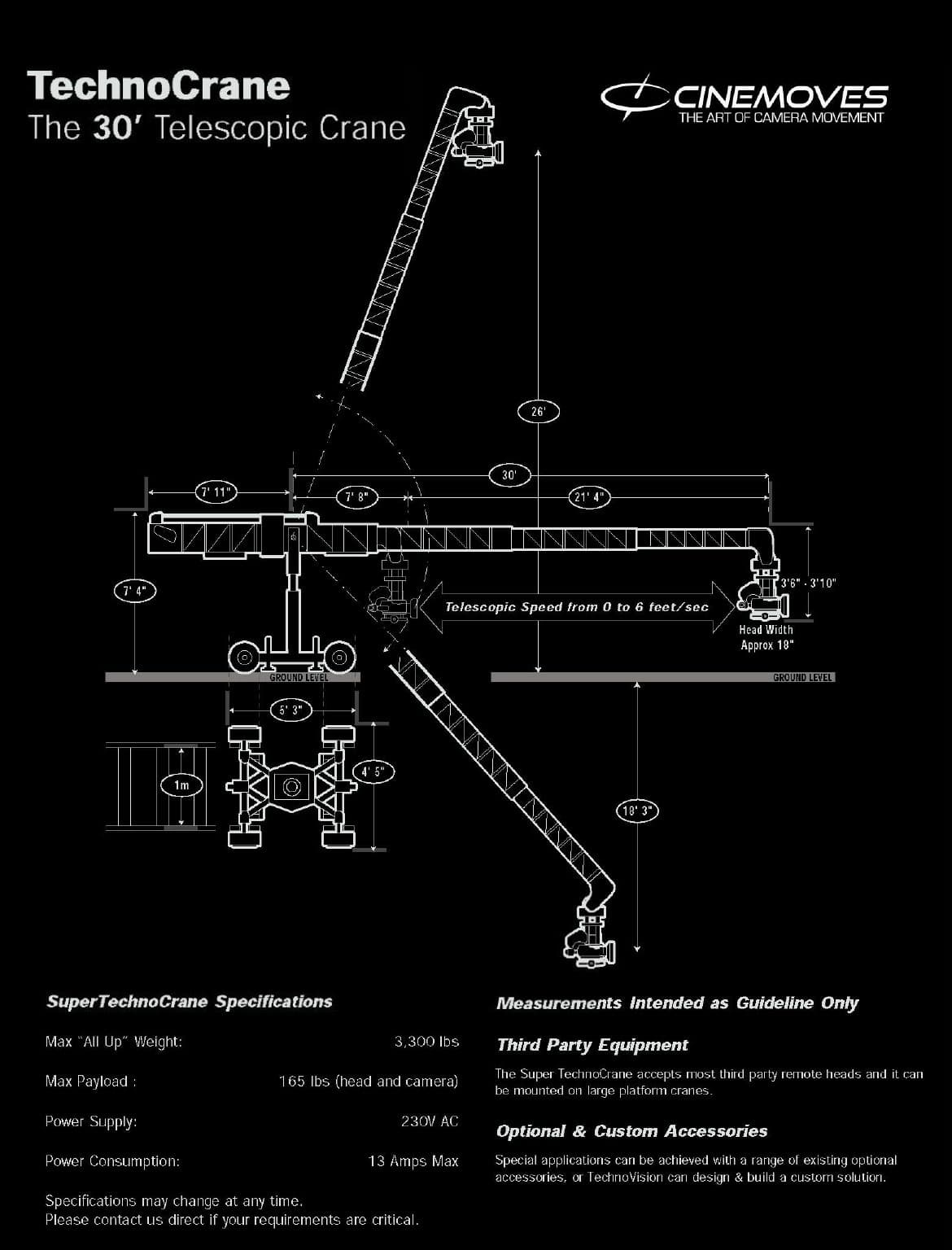

Specifications
